Hot sell AMAN mini 3D cnc router cnc router machine,aman 3040 4 axis for pcb woodpecker cnc engraving ma

Name: Hot sell AMAN mini 3D cnc router cnc router machineaman 3040 4 axis for pcb woodpecker cnc engraving ma
Brand: AMAN
Price: 1200 USD

Buy cheap Hot sell AMAN mini 3D cnc router cnc router machine,aman 3040 4 axis for pcb woodpecker cnc engraving ma product

Place of Origin : jiangsu wuxi city

Brand Name : AMAN

Certification : CE

Model Number : am

MOQ : 1 SET

Price : $1200-$1500

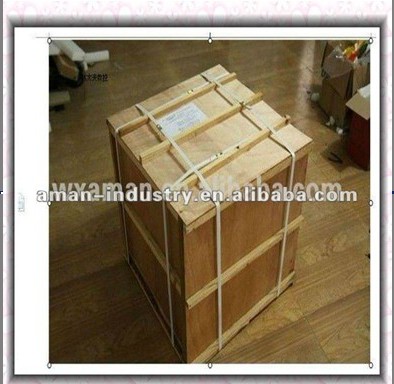

Packaging Details : Export Package

Delivery Time : 5-7 work days

Payment Terms : T/T, WESTERN UNION,Paypal

Supply Ability : 100 set/Mon

Rated Power : 200W(spindle)

Engraving Speed : 3000 mm/min

Main Axle Rotational Speed : 0~8000 rpm

Feeding Height : 80 mm

Milling Cutter Diameter : 2,3,3.175,4,5,6,7 mm

Application : plastic,wood,stainless,pcb

Weight : 55 kg

instruction : G-code

entire precision : 0.04 mm

Control software : Mach 3

Compatible software : KCAM,Type3,artCAM,copperCAM,autoCAD,Coredraw,solidCAM

Construction : Aluminum(Surface Oxidized treatment)

Input voltage : 100V/110V/220V(optional)

rotary axis : optional

DSP handle : optional(Mach system)

Warranty : Two years

Contact Now

1.Details:

•Screw:Taiwan Ball screw;

•Guide:cylinder optical guide(cube guide is optional);

•Control system:G-code;

•Construction:Aluminum plate(Surface Oxidized to ensure perfect result);

•Control software:Mach 3,Type3,KCAM(Optional)

•Spindle:AC 800W water cooling spindle.(0~8000 rpm.);

•Entire precision:0.04 mm;

•Gross weight:55 kg;

Parameter
MAX. X axis travel	300 mm
MAX. Y axis travel	400 mm
MAX. Z aixs travel	80 mm
Size	540520470 mm
Resolution ratio	0.00125 mm
Table structure	steel alloy plate (with trapezoidal slots)
MAX. moving speed	4000 mm/min
Control	3000 mm/min
Main shaft power	200w
Main shaft speed	0-8000 rpm/min
Tool DIA. range	Φ0.3-3.175 mm,4mm,6mm
Voltage	AC 110V/220V (Optional)
Drive model	Stepper and breakdown
Instruction	G-code
System	Window 2000/XP

<a href="http://www.amanmachinery.com/" title="cnc engraving machine">cnc engraving machine </a>

2.Application:

•Suitable for most material,any kinds of wood,any kinds of plastic,PVC,double face board,rubber,aliminum,copper,stainless steel,etc.
